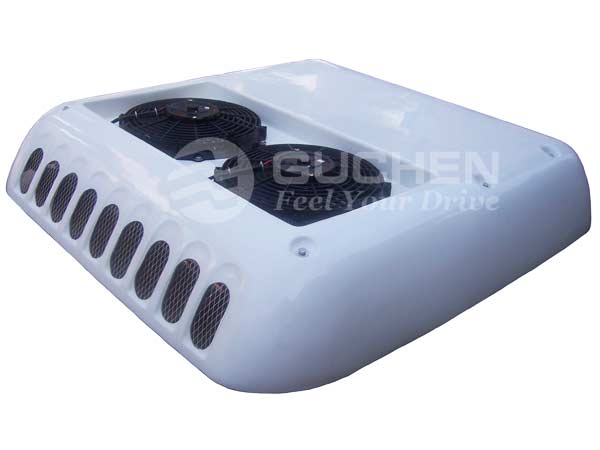

GC-08E Minibús / Van Aire Acondicionado

Con la capacidad de enfriamiento 8 KW, el sistema de GC-08E aire acondicionado montado en el techo es diseñado para 5 - 6m minibuses con hasta 16 asientos, y este sistema de aire acondicionado interno adecuado para el ajuste de la temperatura entre cuando la gente se mueve en mini bus, y continua proporcionando a los conductores y pasajeros de un clima moderado. GC-08E minibús aire acondicionado es accionado por el motor del vehículo, si necesita un totalmente eléctrico aire acondicionado de autobús en la misma capacidad de enfriamiento, por favor hacer clic y seguir leyendo, o directamente en contacto con nosotros.

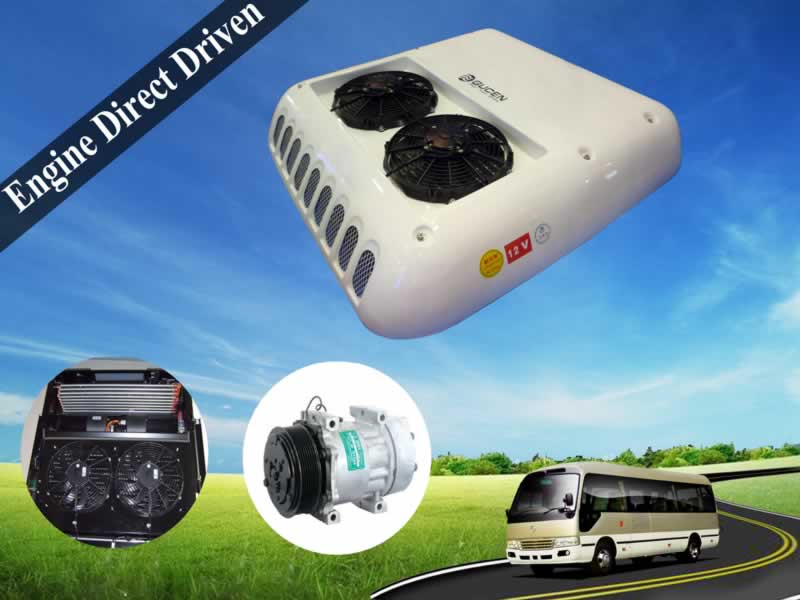

mini bus air conditioning system install on the roof top of the minibus or van



● Available in both heating and cooling

● Roof mounted Air Conditioning system is designed for minibuses up ( or larger cabs ) to 16 seats.

● Original Valeo TM-16 compressor up to 163cc to maximum cooling.

● Aerodynamic design, roof top mounted, not more than 18 cm compare with the mini bus height, and the air resistance and fuel consumption down to a minimum.
● Manual / automatic control mode, simple operate, easily using.
● D-LFThousing with good heating insulation and anti-aging properties.
● Internal screw thread copper tube and hydrophilic aluminum fins making cooling performance optimized.
● Diversity of configurations to meet different needs and superiority in cost-effectiveness.

● Easily and quickly fitted rooftop minibus air conditioner system

Assembled condenser (front) and evaporator (rear) assemble in one unit, then installed unit on the roof of the mini bus / small bus, next then, compressor is connected to the vehicle engine, last steps, the minibus air conditioner was driven by the engine via compressor.







1. Condenser Coil   2. Filter Drier   3. Small Bus Air Conditioner Housing   4. Wire Assembly   5. Evaporator Coil   6. Copper Pipe  7. Evaporator Blower






Need to buy the air conditioning system for cooling your mini bus, van.

● Please ensuring how much the volume of your van / minibus, or how many seats are your van / mini bus have?

● Please tell us your local ambient temperature, if it is more than 30℃ or have some hot desert weather, we will recommend a more suitable air conditioning system for you, in order to make sure you have the best profit of the minibus air conditioner.

● Roof top small bus cooling system for sales, split small bus cooling system is also can be made.
